Hybrid Combiner
HC-6-0727-N |
|
Frequency Range |
698~2700 MHz |
Insertion Loss(dB) |
≤6.9 |
Isolation(dB) |
23 |
VSWR |
1.22 |
Power Handling(W) |
200 |
Intermodulation(dBc) |
-150 @ two +43dBm Carriers |
Impedance(Ω) |
50Ω |
Connector Type |
N-Female (Input 4port, Output 4port) |
Dimensions (mm) |
250*100*60 |
Weight(KG) |
1.5 |
Operating Temperature(°C) |
-20~+60°C |
Ingress protection |
IP66 |
Hybrid Combiner
HC-6-0727 |
|
Frequency Range |
698~2700 MHz |
Insertion Loss(dB) |
≤6.9 (698~800MHz); ≤6.8 (800~2700MHz) |
Isolation(dB) |
25 |
VSWR |
1.22 |
Power Handling(W) |
500 |
Intermodulation(dBc) |
-150 @ two +43dBm Carriers |
Impedance(Ω) |
50Ω |
Connector Type |
DIN-Female (Input 4port, Output 4port) |
Dimensions (mm) |
250*100*61.5 |
Weight(KG) |
3.2 |
Operating Temperature(°C) |
-10~+65°C |
Ingress protection |
IP65 |
Hybrid Combiner
HC-6-0738 |
|
Frequency Range |
698~3800 MHz |
Insertion Loss(dB) |
≤6.8 |
Isolation(dB) |
25 |
VSWR |
1.25 |
Power Handling(W) |
200 |
Intermodulation(dBc) |
-150 @ two +43dBm Carriers |
Impedance(Ω) |
50Ω |
Connector Type |
N-Female (Input 4port, Output 4port) |
Dimensions (mm) |
197*96.4*66 |
Weight(KG) |
2.2 |
Operating Temperature(°C) |
-40~+65°C |
Ingress protection |
IP65 |
Hybrid Combiner
HC-6-0738-D |
|
Frequency Range |
698~3800 MHz |
Insertion Loss(dB) |
≤7.5 |
Isolation(dB) |
20 |
VSWR |
1.3 |
Power Handling(W) |
500 |
Intermodulation(dBc) |
-150 @ two +43dBm Carriers |
Impedance(Ω) |
50Ω |
Connector Type |
DIN-Female (Input 4port, Output 4port) |
Dimensions (mm) |
192*103*59 |
Weight(KG) |
2.6 |
Operating Temperature(°C) |
-40~+65°C |
Ingress protection |
IP65 |
Dual band combiner
C02-0709-1727-02 |
|
Frequency Range |
698~960 MHz ; 1710~2700 MHz |
Insertion Loss(dB) |
≤0.3 |
Isolation(dB) |
50 |
VSWR |
1.22 |
Power Handling(W) |
200 |
Intermodulation(dBc) |
-150 @ two +43dBm Carriers |
Impedance(Ω) |
50Ω |
Connector Type |
N-Female |
Dimensions (mm) |
181*107*52 |
Weight(KG) |
1.7 |
Operating Temperature(°C) |
-25~+55°C |
Ingress protection |
IP65 |
Triple Band Combiner
C03-08-0918-21-01 |
|
Frequency Range |
790~862 ; 880~960 & 1710~1880 MHz; 1920~2170 MHz |
Insertion Loss(dB) |
≤0.4 |
Isolation(dB) |
80 |
VSWR |
1.22 |
Power Handling(W) |
300 |
Intermodulation(dBc) |
-140 @ two +43dBm Carriers |
Impedance(Ω) |
50Ω |
Connector Type |
N-Female |
Dimensions (mm) |
271*171*49 |
Operating Temperature(°C) |
-40~+65°C |
Ingress protection |
IP65 |

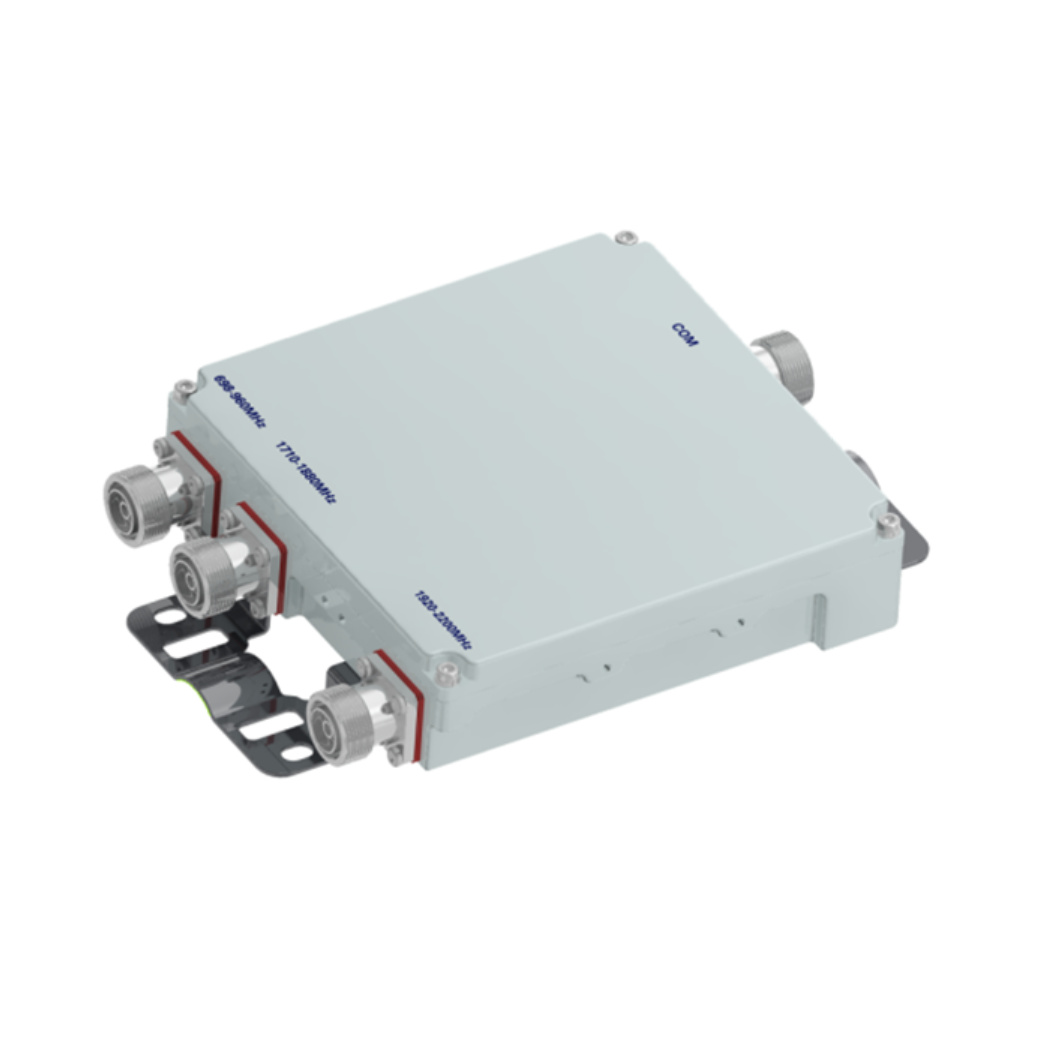

Triple Band Combiner
C03-0709-18-21-01 |
|
Frequency Range |
698 ~ 960MHz ; 1710~1880MHz; 1920~2170 MHz |
Insertion Loss(dB) |
≤0.3 |
Isolation(dB) |
50 |
VSWR |
1.22 |
Power Handling(W) |
200 |
Intermodulation(dBc) |
-150 @ two +43dBm Carriers |
Impedance(Ω) |
50Ω |
Connector Type |
DIN-Female |
Dimensions (mm) |
202*198*52 |
Weight (KG) |
3.3 |
Operating Temperature(°C) |
-20~+65°C |
Ingress protection |
IP67 |
GSM/ DCS/ WCDMA/ LTE Combiner
C04-0709-18-21-26-01 |
|
Frequency Range |
698~960 ; 1710~1880 ; 1920~2170 ; 2300~2700 MHz |
Insertion Loss(dB) |
≤0.35 |
Isolation(dB) |
50 |
VSWR |
1.22 |
Power Handling(W) |
200 |
Intermodulation(dBc) |
-150 @ two +43dBm Carriers |
Impedance(Ω) |
50Ω |
Connector Type |
DIN-Female |
Dimensions (mm) |
167*202*47 |
Weight(KG) |
3.2 |
Operating Temperature(°C) |
-20~+65°C |
Ingress protection |
IP67 |
GSM/ DCS/ WCDMA/ LTE Combiner
C04-0709-18-21-35-01 |
|
Frequency Range |
698~960 ; 1710~1880 ; 1920~2170 ; 3400~3600 MHz |
Insertion Loss(dB) |
≤0.3 ; ≤0.4 ; ≤0.4 ; ≤0.3 |
Isolation(dB) |
50 |
VSWR |
1.3 |
Power Handling(W) |
200 |
Intermodulation(dBc) |
-150 @ two +43dBm Carriers |
Impedance(Ω) |
50Ω |
Connector Type |
DIN-Female |
Dimensions (mm) |
155*220*50 |
Weight(KG) |
3.5 |
Operating Temperature(°C) |
-20~+65°C |
Ingress protection |
IP67 |
Multi Band Combiner
C05-G/D/U/W/L-01 |
|
Frequency Range |
880~960 ; 1710~1880 ; 1920~2170 ; 2400~2483.5 ; 2500~2690 MHz |
Insertion Loss(dB) |
880~960 ≤0.3 ; 1710~2170 ≤0.5 ; 2400~2690 ≤0.8 |
Isolation(dB) |
50 |
VSWR |
1.22 |
Power Handling(W) |
500 |
Intermodulation(dBc) |
-140 @ two +43dBm Carriers |
Impedance(Ω) |
50Ω |
Connector Type |
DIN-Female |
Dimensions (mm) |
292 * 182 * 47 |
Weight(KG) |
5.8 |
Operating Temperature(°C) |
-5~+60°C |
Ingress protection |
IP67 |
